Part III: Galaxies
Explore the vast island universes that contain billions of stars. Understand galaxy structure, classification, and the surprising discovery that they're not isolated but connected through cosmic evolution and the mysterious dark matter that binds them together.
📚 Download Chapter PDFs
Download the original textbook chapters for offline reading and reference:
Chapter 9: Our Milky Way Galaxy
Our Home in the Cosmos
On a clear, dark night far from city lights, you can see a faint, luminous band stretching across the sky. The ancient Greeks called it galaxias kyklos — the "milky circle" — and this is the origin of the name we use today: the Milky Way. What you are seeing is the combined light of billions of stars, all belonging to the enormous disk-shaped galaxy in which our Sun resides.
For centuries, humanity debated whether these faint patches of light were clouds of gas within our own stellar system or separate "island universes" far beyond. It was Galileo who first resolved the Milky Way into individual stars with his telescope in 1610. But the true scale and structure of our galaxy only became clear in the 20th century, through the pioneering work of Harlow Shapley, Jan Oort, and others.
Structure: Disk, Bulge, and Halo
The Milky Way is a barred spiral galaxy, and its structure can be divided into three main components:
The Three Components:
The Disk
A flattened structure about 100,000 light-years in diameter but only about 1,000–2,000 light-years thick. Contains the spiral arms, most of the gas and dust, and the majority of young, blue stars. The Sun sits within the disk, about 26,000 light-years from the center.
The Bulge
A roughly spheroidal concentration of stars at the center of the galaxy, extending about 10,000 light-years across. The bulge contains primarily older, redder stars and is shaped somewhat like a peanut or box when viewed from certain angles — a signature of the central bar.
The Halo
A roughly spherical region extending far beyond the disk, perhaps 300,000 light-years or more. It contains globular clusters (ancient, dense balls of hundreds of thousands of stars), a sparse population of old stars, and — most importantly — an enormous amount of invisible dark matter.
The Interstellar Medium
The space between stars in the Milky Way is not empty. It is filled with the interstellar medium (ISM) — a mixture of gas and dust that accounts for about 10–15% of the disk's mass. The ISM is the raw material from which new stars form, and it is also enriched by the deaths of old stars through stellar winds and supernovae.
Gas Components
- • Molecular clouds: Cold (10–20 K), dense clouds of H₂ — the birthplaces of stars
- • HI regions: Neutral atomic hydrogen at ~100 K, detected via the 21-cm radio line
- • HII regions: Hot, ionized hydrogen (~10,000 K) around massive stars — they glow in beautiful emission nebulae
- • Hot ionized medium: Very hot gas (~10⁶ K) heated by supernova explosions, filling much of the galaxy's volume
Dust
Tiny solid grains (typically 0.01–1 micrometer) made of silicates, carbon compounds, and ice. Though dust makes up only about 1% of the ISM by mass, it has profound effects: it absorbs and scatters starlight (causing interstellar extinction and reddening), and it re-emits the absorbed energy in the infrared. Dust also provides surfaces where molecules — including H₂ — can form, making it essential for star formation.
The interstellar medium is a dynamic ecosystem: supernovae inject energy and heavy elements, creating expanding bubbles and superbubbles. Gas cools and condenses into molecular clouds, which collapse to form new stars. Those stars eventually return material to the ISM through winds and explosions, continuing the cycle. This galactic recycling is key to understanding why the Milky Way continues to form stars today, roughly 13 billion years after it first formed.
Spiral Arms
One of the most striking features of the Milky Way is its spiral structure. Our galaxy has several major spiral arms — including the Perseus Arm, the Sagittarius Arm, the Scutum-Centaurus Arm, and the Outer Arm — winding outward from the ends of a central bar. The Sun is located in a smaller structure called the Orion Spur (or Orion Arm), which sits between the Perseus and Sagittarius Arms.
But spiral arms are not like the rigid spokes of a wheel. They are density waves — regions where gas, dust, and stars are temporarily compressed as they orbit the galactic center. Think of a traffic jam on a highway: individual cars move through the jam, but the jam itself stays in roughly the same place. Similarly, stars pass through spiral arms, and the compression triggers new star formation, lighting up the arms with bright, blue, newly born stars.
The Galactic Center and Sagittarius A*
At the very heart of the Milky Way lies one of the most extraordinary objects in the universe: a supermassive black hole known as Sagittarius A* (pronounced "Sagittarius A-star," often abbreviated Sgr A*). We cannot see the galactic center in visible light because thick clouds of gas and dust block our view. But radio waves, infrared light, and X-rays can penetrate the dust, revealing the bustling activity at the galaxy's core.
Key Facts About Sagittarius A*:
- • Mass: Approximately 4 million times the mass of the Sun (\(M_{\text{Sgr A*}} \approx 4 \times 10^6 \, M_\odot\))
- • Size: The event horizon has a radius of about 12 million km — large by everyday standards, but tiny compared to the galaxy
- • Evidence: Stars orbiting the galactic center have been tracked for decades. The star S2 completes an orbit in just 16 years at speeds up to 7,650 km/s
- • Image: In 2022, the Event Horizon Telescope collaboration released the first image of Sgr A*, showing the glowing ring of superheated gas around the black hole's shadow
Stellar Populations
Astronomers classify stars into distinct populations based on their age, chemical composition, and location within the galaxy:
Population I
Young, metal-rich stars found primarily in the galactic disk and spiral arms. Our Sun is a Population I star. These stars formed from gas that had already been enriched with heavy elements by previous generations of supernovae. They tend to move in nearly circular orbits within the disk.
Population II
Old, metal-poor stars found primarily in the galactic halo and bulge, especially in globular clusters. These formed early in the galaxy's history from nearly pristine hydrogen and helium. They move on highly elliptical orbits that can carry them far above and below the disk.
Population III (Hypothetical)
The very first generation of stars, formed from the pristine hydrogen and helium produced in the Big Bang — with zero metals. These stars are thought to have been extremely massive (100–1,000 solar masses) and short-lived. None have been directly observed, but their chemical fingerprints may survive in the oldest Population II stars.
How We Map the Milky Way
Mapping our own galaxy is particularly challenging because we are embedded inside it — like trying to map a forest from within. We cannot simply step outside and take a photograph. Instead, astronomers use several complementary techniques:
Mapping Techniques:
- • Radio observations (21-cm line): Neutral hydrogen emits radio waves at 21 cm wavelength. Radio waves pass through dust, so we can map the distribution and velocity of hydrogen gas throughout the entire disk, revealing spiral arm structure
- • Infrared surveys: Infrared light penetrates dust far better than visible light, allowing us to see stars toward and beyond the galactic center. Surveys like 2MASS and WISE have mapped billions of stars across the galaxy
- • Parallax (Gaia mission): The European Space Agency's Gaia satellite has measured precise distances and motions for nearly 2 billion stars, creating an unprecedented 3D map of the Milky Way
- • Stellar tracers: Young, luminous stars (like O and B stars) and Cepheid variables trace the spiral arms. Globular clusters map the halo. Pulsars reveal the distribution of ionized gas
The Dark Matter Halo
One of the most important discoveries in 20th-century astronomy came from studying how fast stars and gas clouds orbit the galactic center. If the Milky Way's mass were concentrated in the visible stars and gas, we would expect orbital velocities to decrease with distance from the center — just as planets farther from the Sun orbit more slowly, following Kepler's laws.
Instead, observations reveal something startling: rotation curves are flat. Stars and gas at great distances from the galactic center orbit just as fast as those much closer in. This means there must be far more mass than we can see. This invisible mass, known as dark matter, is thought to form an enormous, roughly spherical halo surrounding the entire galaxy.
The Rotation Curve Argument:
For a circular orbit, gravity provides the centripetal force. Setting gravitational force equal to centripetal force gives us the expected orbital velocity:
where \(M(R)\) is the total mass enclosed within radius \(R\). If mass is concentrated at the center (like in the solar system), then \(M(R)\) is roughly constant beyond a certain radius, and \(V \propto R^{-1/2}\) — velocity decreases with distance. But flat rotation curves mean \(V \approx \text{constant}\), which requires \(M(R) \propto R\) — mass must keep increasing linearly with radius, far beyond where the visible stars end.
Mathematical Deep Dive: Galactic Rotation and Dark Matter Mass
Optional - Skip if you're just starting out
For a star in a circular orbit at radius \(R\) from the galactic center, gravitational and centripetal forces balance:
Solving for the enclosed mass:
For the Sun at \(R \approx 8 \, \text{kpc}\) and \(V \approx 220 \, \text{km/s}\):
That is about 90 billion solar masses enclosed within the Sun's orbit alone. Since the flat rotation curve extends far beyond the visible disk, the total mass of the dark matter halo is estimated at\(\sim 1\text{–}2 \times 10^{12} \, M_\odot\), roughly ten times the mass of all the visible matter.
The orbital period of the Sun around the galaxy is:
Size and Mass Estimates
Putting it all together, the Milky Way is a truly enormous structure:
Milky Way by the Numbers:
- • Disk diameter: ~100,000 light-years (30 kpc)
- • Disk thickness: ~1,000–2,000 light-years
- • Number of stars: 100–400 billion
- • Stellar mass: ~5 × 10¹⁰ solar masses
- • Total mass (including dark matter): ~1–2 × 10¹² solar masses
- • Dark matter fraction: ~85–90% of total mass
- • Sun's distance from center: ~26,000 light-years (8 kpc)
- • Sun's orbital speed: ~220 km/s
- • Sun's orbital period: ~225 million years (one "galactic year")
- • Number of satellite galaxies: ~50 known (including the Large and Small Magellanic Clouds)
Key Takeaway:
The Milky Way is not just a collection of stars — it is a complex, dynamic system with multiple structural components, each with distinct stellar populations and kinematics. And perhaps most remarkably, the vast majority of its mass is invisible dark matter that we can only detect through its gravitational influence. We live inside one of the universe's grand structures, yet we are still mapping its full extent.
For Graduate Students
Dive deeper into galactic dynamics, orbital mechanics in axisymmetric potentials, the Jeans equations, and N-body simulations of spiral structure:
Chapter 10: Types of Galaxies
A Universe of Diversity
Our Milky Way is just one galaxy among hundreds of billions in the observable universe. When astronomers turned their telescopes to the faint "nebulae" scattered across the sky, they discovered a stunning diversity of shapes and sizes. Some galaxies are beautiful spirals like our own; others are smooth, featureless ellipsoids; and still others are chaotic, irregular blobs. Understanding this diversity — and what causes it — is one of the central goals of extragalactic astronomy.
The story of galaxy classification begins with Edwin Hubble, who in the 1920s not only proved that galaxies are separate "island universes" far beyond the Milky Way, but also developed the first systematic scheme for organizing them by their appearance.
The Hubble Sequence: The Tuning Fork Diagram
Hubble's classification scheme, published in 1926, arranges galaxies along a sequence that resembles a tuning fork. This is sometimes called the Hubble sequence or Hubble tuning fork:
The Tuning Fork:
- • Left (handle): Elliptical galaxies (E0 through E7), from nearly spherical to highly elongated
- • Middle (fork junction): Lenticular galaxies (S0) — a transition type with a disk but no spiral arms
- • Upper prong: Normal spiral galaxies (Sa, Sb, Sc) — with increasingly open arms and smaller bulges
- • Lower prong: Barred spiral galaxies (SBa, SBb, SBc) — spirals with a prominent central bar
Hubble originally thought this was an evolutionary sequence (from "early" ellipticals to "late" spirals), but we now know this is not the case. The terminology "early-type" and "late-type" persists, however, as a historical artifact.
Spiral Galaxies
Spiral galaxies are among the most photogenic objects in the universe. They consist of a flat, rotating disk with spiral arms, a central bulge, and a surrounding halo. Spiral galaxies are rich in gas and dust, and their arms are sites of active star formation, giving them a characteristic blue tinge from young, hot stars.
Sa / SBa (Early Spirals)
Tightly wound spiral arms, a large and prominent bulge, and relatively little gas. The arms are smooth and less well-defined. Star formation rates are moderate.
Sb / SBb (Intermediate)
Moderately wound arms, a medium-sized bulge. The Milky Way is classified as an SBb or SBbc — a barred spiral with moderately open arms.
Sc / SBc (Late Spirals)
Loosely wound, open arms with lots of gas, dust, and vigorous star formation. The bulge is small or nearly absent. These galaxies appear very blue due to abundant young stars.
Barred vs. Unbarred
About two-thirds of all spiral galaxies have a central bar — an elongated structure of stars extending through the bulge. Bars can channel gas inward, fueling star formation and sometimes feeding a central black hole.
Elliptical Galaxies
Elliptical galaxies are smooth, featureless systems with little gas, dust, or ongoing star formation. They are composed primarily of old, red stars and range enormously in size — from dwarf ellipticals containing just a few million stars to giant ellipticals with trillions of stars that dominate the centers of galaxy clusters.
Classification E0 through E7:
The number following "E" indicates the apparent ellipticity. An E0 galaxy appears perfectly round (like a circle on the sky), while an E7 galaxy appears very elongated (like a flattened football). The classification number is defined as:
where \(a\) is the semi-major axis and \(b\) is the semi-minor axis of the galaxy's projected shape on the sky. Note that this is the apparent shape — the true 3D shape can be quite different depending on our viewing angle.
Key Properties of Ellipticals:
- • Stars: Predominantly old, red, low-mass stars (Population II type)
- • Gas and dust: Very little — they have used up or lost most of their interstellar medium
- • Star formation: Essentially none — they are "red and dead"
- • Stellar orbits: Stars move on random, chaotic orbits (not orderly circular rotation like in disks)
- • Size range: From dwarf ellipticals (~10⁷ solar masses) to giant cD galaxies (~10¹³ solar masses)
- • Formation: Thought to form through major mergers of spiral galaxies
Figure 10.1: Examples of galaxy morphologies — from smooth ellipticals to grand-design spirals and irregular galaxies, illustrating the diversity captured by the Hubble classification scheme.
Irregular Galaxies
Not all galaxies fit neatly into Hubble's scheme. Irregular galaxies lack the symmetry of spirals or ellipticals. They come in two sub-types:
Irr I (Magellanic Type)
Show some structure (perhaps a bar or asymmetric spiral features) but are too disordered to be classified as spirals. The Large and Small Magellanic Clouds — satellite galaxies of the Milky Way — are classic examples. These are rich in gas and have active star formation.
Irr II (Peculiar)
Show no discernible structure at all and are often the result of galaxy interactions or mergers. Tidal forces from a nearby galaxy can completely distort a galaxy's shape, pulling out long "tidal tails" of stars and gas.
Lenticular Galaxies: The In-Betweens
Between ellipticals and spirals on the Hubble sequence sit the lenticular galaxies (designated S0 or SB0). These galaxies have a prominent disk and a bulge — like spirals — but they lack spiral arms and have very little gas or ongoing star formation — like ellipticals. They are sometimes described as "disk galaxies that have run out of gas."
Lenticular galaxies are thought to form when spiral galaxies exhaust or lose their gas supply. In galaxy clusters, processes like ram-pressure stripping (where the hot intracluster gas strips away a galaxy's own gas as it moves through the cluster) can transform a star-forming spiral into a passive lenticular. This explains why lenticular galaxies are much more common in dense cluster environments than in the field.
Measuring Galaxy Distances: Hubble's Law

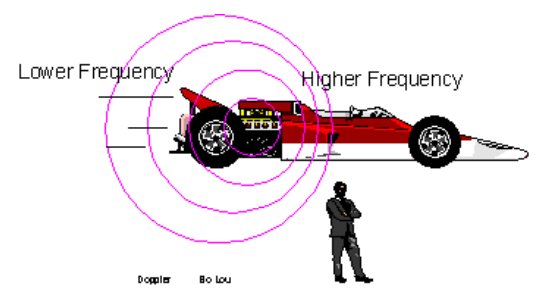

One of the most important discoveries in the history of astronomy was Edwin Hubble's observation in 1929 that distant galaxies are moving away from us, and that the farther away a galaxy is, the faster it recedes. This relationship — Hubble's law — is expressed as:
where:
- • \(v\) is the recession velocity of the galaxy (measured from its redshift)
- • \(d\) is the distance to the galaxy
- • \(H_0 \approx 70 \, \text{km/s/Mpc}\) is the Hubble constant
This is not because galaxies are flying through space away from us. Rather, space itself is expanding, carrying the galaxies along with it. Hubble's law provides a powerful tool for measuring distances: simply measure a galaxy's redshift, and you can estimate its distance. For example, a galaxy receding at 7,000 km/s is at a distance of\(d = 7000/70 = 100 \, \text{Mpc} \approx 326\) million light-years.
What Determines Galaxy Morphology?
Why do some galaxies become spirals while others become ellipticals? This is one of the great questions in galaxy evolution, and the answer involves several factors:
- Angular momentum: Gas clouds that collapse with more spin tend to form disks and spirals; those with less spin form ellipsoids
- Mergers: When two spiral galaxies collide and merge, the result is often an elliptical galaxy — the orderly disk orbits are scrambled into random motion
- Environment: Galaxies in dense clusters are more likely to be ellipticals (due to frequent interactions), while those in the field tend to be spirals
- Gas supply: Galaxies that retain or accrete gas can sustain star formation and maintain spiral structure; those that lose their gas become red and featureless
Mathematical Deep Dive: The Sersic Profile
Optional - Skip if you're just starting out
The surface brightness profile of galaxies — how their brightness falls off with distance from the center — is described by the Sersic profile:
where:
- • \(I_e\) is the surface brightness at the effective (half-light) radius \(R_e\)
- • \(R_e\) is the radius enclosing half the total light
- • \(n\) is the Sersic index, which controls the shape of the profile
- • \(b_n \approx 2n - 1/3\) is a normalization constant
The Sersic index \(n\) is the key parameter:
- • \(n = 1\): Exponential profile — typical of spiral galaxy disks
- • \(n = 4\): de Vaucouleurs profile — typical of elliptical galaxies and spiral bulges
- • \(n < 1\): Flatter central profile — typical of dwarf galaxies
This single formula, with different values of \(n\), captures the surface brightness distribution of nearly all galaxy types. Measuring \(n\) for a galaxy provides a quantitative way to classify its morphology.
Key Takeaway:
Galaxy morphology is not destiny — it is the result of a galaxy's formation history, its interactions with neighbors, and its environment. Spirals can become ellipticals through mergers, and isolated galaxies tend to preserve their spiral structure. The Hubble sequence is a snapshot of diversity, not an evolutionary track.
For Graduate Students
Explore advanced topics in galaxy dynamics, photometric decomposition, kinematic classification, and the role of dark matter halos in determining galaxy structure:
Chapter 11: Galaxy Clusters & Large Scale Structure
Galaxies Are Not Alone
Galaxies rarely exist in isolation. Just as stars cluster together in galaxies, galaxies themselves cluster together under the pull of gravity, forming structures at ever-larger scales. From small groups of a few galaxies to massive clusters containing thousands, and from vast filaments to enormous voids, the universe has a rich and intricate large-scale structure — a cosmic web that spans billions of light-years.
Galaxy Groups
The smallest galaxy associations are called groups. A typical galaxy group contains a handful to a few dozen galaxies, bound together by their mutual gravity, spanning a region of 1–3 million light-years (about 1 Mpc).
The Local Group:
Our own Milky Way belongs to a small galaxy group called the Local Group, which contains about 80 known member galaxies spread across roughly 10 million light-years. The three dominant members are:
Milky Way
Our home galaxy — a barred spiral with ~200–400 billion stars and a mass of ~1.5 × 10¹² solar masses (including dark matter). It has ~50 known satellite galaxies, including the Large and Small Magellanic Clouds.
Andromeda (M31)
The largest galaxy in the Local Group — a spiral about 2.5 million light-years away. Slightly larger than the Milky Way, it is approaching us at ~110 km/s and will merge with the Milky Way in about 4.5 billion years.
Triangulum (M33)
The third-largest member — a smaller spiral galaxy about 2.7 million light-years away. It may be a satellite of Andromeda. With ~40 billion stars, it is much less massive than the two giants.
The remaining ~77 members are mostly small dwarf galaxies — irregular dwarfs, dwarf ellipticals, and ultra-faint dwarfs — many of which are satellites of the Milky Way or Andromeda.
Galaxy Clusters
On a larger scale, hundreds to thousands of galaxies can be bound together in galaxy clusters. These are the largest gravitationally bound structures in the universe, spanning 5–30 million light-years (a few to ~10 Mpc) and containing total masses of \(10^{14}\text{–}10^{15} \, M_\odot\).
Properties of Galaxy Clusters:
- • Galaxy count: 50–1,000+ bright galaxies, plus many more dwarfs
- • Hot gas (ICM): Clusters are filled with extremely hot gas (10⁷–10⁸ K) called the intracluster medium. This gas emits X-rays and actually contains more baryonic mass than all the galaxies combined
- • Velocity dispersion: Galaxies in clusters move at 500–1,500 km/s relative to the cluster center
- • Dark matter: ~80–85% of a cluster's mass is dark matter, ~12–15% is hot gas, and only ~3–5% is in stars
- • Dominant galaxy: Rich clusters often have a giant elliptical or cD galaxy at their center, formed from the merger of many smaller galaxies
Famous examples include the Virgo Cluster (the nearest major cluster, about 54 million light-years away, with ~1,300 member galaxies) and the Coma Cluster (about 320 million light-years away, one of the first clusters where dark matter was inferred by Fritz Zwicky in 1933).
Mathematical Deep Dive: Weighing a Galaxy Cluster
Optional - Skip if you're just starting out
The virial theorem allows us to estimate the total mass of a galaxy cluster from the motions of its member galaxies. For a gravitationally bound system in equilibrium, the virial theorem states that the time-averaged kinetic energy equals minus one-half the time-averaged potential energy:
This leads to the virial mass estimate:
where \(\sigma_v\) is the velocity dispersion of the galaxies (how fast they are moving relative to each other), \(R\) is the cluster radius, and \(G\) is the gravitational constant.
For a typical rich cluster with \(\sigma_v \approx 1000 \, \text{km/s}\) and\(R \approx 2 \, \text{Mpc} \approx 6 \times 10^{22} \, \text{m}\):
When Fritz Zwicky performed this calculation for the Coma Cluster in 1933, he found that the virial mass was about 400 times larger than the mass of the visible galaxies — one of the first pieces of evidence for dark matter, which he called "dunkle Materie."
Superclusters
Galaxy clusters themselves are not evenly distributed. They tend to group together into even larger structures called superclusters — chains and concentrations of clusters spanning 100–300 million light-years. Our own Local Group is part of the Laniakea Supercluster (identified in 2014), which contains about 100,000 galaxies spread across 520 million light-years.
Unlike galaxy clusters, superclusters are generally not gravitationally bound — they are being pulled apart by the expansion of the universe. They represent the transition scale between bound structures and the overall Hubble expansion. At the very largest scales (above roughly 300 Mpc), the universe appears remarkably uniform and homogeneous, as predicted by the cosmological principle.
Notable Superclusters:
- • Laniakea: Our home supercluster, containing the Virgo Cluster at its center and the Local Group on its outskirts
- • Shapley Supercluster: One of the most massive concentrations of galaxies in the nearby universe, pulling our region of space toward it at ~600 km/s
- • Perseus-Pisces Supercluster: A major chain of galaxy clusters stretching across 300 million light-years
- • Sloan Great Wall: One of the largest known structures, spanning 1.37 billion light-years — a wall of galaxies discovered in the Sloan Digital Sky Survey
The Cosmic Web
When astronomers mapped the positions of millions of galaxies in three dimensions (using redshifts to measure distances), they discovered that the universe has a breathtaking large-scale structure. Galaxies are not distributed randomly — instead, they are arranged in a vast, interconnected network called the cosmic web.
Components of the Cosmic Web:
Filaments
Long, thread-like structures of galaxies and dark matter that connect galaxy clusters. Filaments can stretch for hundreds of millions of light-years. They contain most of the matter in the universe and are the "highways" along which galaxies travel toward clusters.
Voids
Enormous, roughly spherical regions of space that are nearly empty of galaxies. Voids can be 100–300 million light-years across and contain only a handful of galaxies. They make up roughly 80% of the volume of the universe.
Walls and Sheets
Flat, two-dimensional surfaces of galaxies that form the boundaries between voids. The most famous example is the Great Wall discovered by Margaret Geller and John Huchra in 1989, stretching over 500 million light-years.
Nodes (Clusters)
Galaxy clusters sit at the intersections of filaments — the densest knots in the cosmic web. Matter flows along filaments and accumulates at these nodes, making clusters the densest environments in the large-scale universe.
This cosmic web structure is a direct consequence of the initial density fluctuations in the very early universe. Slightly denser regions attracted more matter through gravity, while underdense regions emptied out, creating the web-like pattern we observe today. Computer simulations of dark matter and gas, such as the Millennium Simulation and IllustrisTNG, reproduce this structure with remarkable fidelity.
Dark Matter in Clusters: Gravitational Lensing
One of the most powerful methods for mapping dark matter in galaxy clusters is gravitational lensing. Einstein's general theory of relativity tells us that mass curves spacetime, and light follows the curvature. When light from a distant background galaxy passes near a massive foreground cluster, the cluster's gravity bends the light, distorting and magnifying the background galaxy's image.
Types of Gravitational Lensing:
- • Strong lensing: Produces dramatic arcs, multiple images, or even complete rings (Einstein rings) of background galaxies. Requires near-perfect alignment between source, lens, and observer
- • Weak lensing: Produces subtle, statistical distortions of background galaxy shapes. By analyzing the shapes of thousands of background galaxies, astronomers can map the distribution of dark matter throughout the cluster
- • Microlensing: Lensing by individual stars or compact objects, causing brief brightening of background sources
Mathematical Deep Dive: The Einstein Radius
Optional - Skip if you're just starting out
When a massive object perfectly aligns between us and a distant source, the source's light is bent into a ring. The angular radius of this ring — the Einstein radius — depends on the mass of the lens and the distances involved:
where:
- • \(M\) is the mass of the lensing object
- • \(D_L\) is the distance to the lens (the cluster)
- • \(D_S\) is the distance to the source (background galaxy)
- • \(D_{LS}\) is the distance from the lens to the source
For a galaxy cluster with \(M \sim 10^{15} \, M_\odot\) at a distance of ~1 Gpc, the Einstein radius is typically 10–30 arcseconds — large enough to produce spectacular arcs that are clearly visible in telescope images. By measuring the size and shape of these arcs, astronomers can reconstruct the cluster's total mass distribution, including its dark matter.
A dramatic confirmation of dark matter came from the Bullet Cluster (1E 0657-558), a pair of galaxy clusters that collided. X-ray observations showed that the hot gas (which interacts and slows down) was separated from the bulk of the mass (mapped by gravitational lensing). This proved that most of the mass is in the form of dark matter, which passed through the collision without interacting — exactly what we would expect if dark matter interacts only through gravity.
Key Takeaway:
The universe is not a random scattering of galaxies. It is organized into a cosmic web of filaments, walls, voids, and clusters — a structure that was seeded by quantum fluctuations in the first moments after the Big Bang and sculpted over billions of years by gravity. Dark matter, which outmasses visible matter by a factor of five, is the invisible scaffolding upon which this cosmic web is built.
For Graduate Students
Explore the mathematics of structure formation, the halo mass function, N-body simulations, and the detailed physics of the intracluster medium:
Chapter 12: Active Galactic Nuclei (AGN)
The Most Powerful Engines in the Universe
Most galaxies are relatively quiet at their centers — their supermassive black holes sit dormant, surrounded by a sparse diet of gas. But in a small fraction of galaxies, the central black hole is actively consuming material at a prodigious rate, releasing extraordinary amounts of energy in the process. These galaxies harbor active galactic nuclei (AGN) — compact, luminous cores that can outshine the entire host galaxy by factors of 100 or more.
AGN are among the most luminous objects in the universe. Their energy output spans the entire electromagnetic spectrum — from radio waves to gamma rays — and is powered not by nuclear fusion (like stars) but by the gravitational energy released as matter spirals into a supermassive black hole. Understanding AGN is crucial because they play a central role in galaxy evolution, influencing star formation across entire galaxy clusters.
Supermassive Black Holes at Galaxy Centers
We now know that virtually every massive galaxy harbors a supermassive black hole (SMBH) at its center — including our own Milky Way, with its 4-million-solar-mass Sgr A*. These black holes range in mass from about a million to tens of billions of solar masses.
The M-sigma Relation:
One of the most remarkable discoveries in modern astronomy is a tight correlation between the mass of a galaxy's central black hole and the velocity dispersion of stars in the galaxy's bulge:
This means the black hole (which has a size of only light-hours) somehow "knows about" the properties of the galaxy bulge (which extends thousands of light-years). This implies a deep connection between black hole growth and galaxy evolution — they must regulate each other through feedback processes.
The Accretion Disk: Engine of an AGN
A supermassive black hole by itself does not produce light. The enormous luminosity of an AGN comes from the accretion disk — a swirling disk of gas that spirals inward toward the black hole. As gas falls inward, it loses gravitational potential energy, which is converted to heat through friction and viscosity within the disk. The inner parts of the disk reach temperatures of millions of degrees, emitting copious amounts of ultraviolet light and X-rays.
The accretion disk is remarkably efficient at converting mass into energy. While nuclear fusion in stars converts only about 0.7% of rest-mass energy into radiation, accretion onto a black hole can convert 6–42% — making it the most efficient sustained energy generation mechanism known in the universe. A quasar consuming just a few solar masses of gas per year can outshine an entire galaxy of 100 billion stars.
The Accretion Disk Temperature Profile:
In a standard thin accretion disk (the Shakura-Sunyaev model), the temperature varies with distance from the black hole:
- • Inner edge (~3 R_S): ~10⁷ K — emits X-rays
- • Middle region: ~10⁵–10⁶ K — emits UV light
- • Outer disk: ~10³–10⁴ K — emits optical and infrared light
This broad range of temperatures means AGN emit across the entire electromagnetic spectrum, which is one of their distinctive observational signatures.
Quasars: Beacons Across the Universe
The story of AGN began with a puzzle. In the 1960s, radio astronomers discovered several enigmatic point-like radio sources that looked like stars but had bizarre, unidentifiable spectra. In 1963, astronomer Maarten Schmidt realized that the spectral lines of the source 3C 273 were actually familiar hydrogen lines — but shifted enormously to longer wavelengths by the expansion of the universe. This redshift indicated that 3C 273 was not a nearby star at all, but an incredibly distant and luminous object — a quasi-stellar radio source, or quasar.
Quasar Facts:
- • Luminosity: Quasars can be 10¹²–10¹⁴ times the luminosity of the Sun — equivalent to hundreds of entire galaxies
- • Size: All this energy comes from a region smaller than our solar system (light-days to light-weeks across)
- • Distance: Most quasars are found at high redshift (z = 1–7), meaning we see them as they were billions of years ago — they were more common in the early universe
- • Variability: Quasars can vary in brightness over weeks or months, proving that the emitting region must be extremely compact
- • Host galaxies: Deep images reveal that every quasar sits at the center of a galaxy — they are the extreme examples of active galactic nuclei
The AGN Zoo: Seyferts, Blazars, and More
Before astronomers understood the unifying physical picture, they catalogued many different types of active galaxies based on their observational properties:
Types of AGN:
- • Seyfert 1 galaxies: Spiral galaxies with bright, point-like nuclei showing both broad and narrow emission lines. Named after Carl Seyfert, who identified them in 1943
- • Seyfert 2 galaxies: Similar to Seyfert 1s, but showing only narrow emission lines — the broad-line region is hidden by the dusty torus
- • Quasars: Extremely luminous AGN at cosmological distances — essentially ultra-powerful Seyfert 1 nuclei that outshine their host galaxies
- • Radio galaxies: Typically giant elliptical galaxies with powerful radio-emitting jets and lobes extending far beyond the galaxy
- • Blazars: AGN with jets pointed almost directly at Earth, showing extreme variability and very high energies (including gamma rays)
- • LINERs: Low-Ionization Nuclear Emission-line Regions — the most common type of AGN, with relatively low luminosity and weak activity
For decades, these different AGN types were studied as separate phenomena. The breakthrough came when astronomers realized they might all be the same thing viewed from different perspectives.
The AGN Unification Model
Over the decades, astronomers discovered many different types of AGN — Seyfert galaxies, quasars, blazars, radio galaxies, LINERs — each with different observational properties. It was a confusing zoo of objects until researchers realized that many of these apparent differences could be explained by a single physical model viewed from different angles. This is the AGN unification model.
The Unified AGN Structure:
All AGN are thought to share the same basic components:
- • Supermassive black hole: The central engine, with mass 10⁶–10¹⁰ solar masses
- • Accretion disk: A swirling disk of superheated gas spiraling into the black hole. Friction in the disk heats the gas to millions of degrees, producing intense UV and X-ray emission
- • Broad-line region (BLR): Fast-moving clouds of gas close to the black hole (light-days to light-weeks away), producing broad emission lines due to their high velocities
- • Narrow-line region (NLR): Slower-moving gas clouds farther out (hundreds to thousands of light-years), producing narrow emission lines
- • Dusty torus: A thick, doughnut-shaped ring of gas and dust surrounding the accretion disk. This torus can block our view of the inner regions depending on our viewing angle
- • Jets (in some AGN): Collimated beams of relativistic particles launched perpendicular to the accretion disk, extending thousands to millions of light-years
The key insight of unification is that viewing angle determines what type of AGN we observe:
Face-On View
When we look straight down the throat of the torus, we see the accretion disk, the broad-line region, and the narrow-line region directly. This gives us a Type 1 AGN (Seyfert 1 galaxy, or a quasar if it is very luminous) — characterized by both broad and narrow emission lines and strong UV/X-ray continuum.
Edge-On View
When the dusty torus blocks our line of sight to the central engine, we cannot see the accretion disk or the broad-line region. We see only the narrow-line region (which extends above and below the torus). This gives us a Type 2 AGN (Seyfert 2 galaxy) — with only narrow emission lines.
Down the Jet
If the AGN has jets and we happen to look almost directly down the jet axis, the relativistically beamed emission from the jet dominates everything else. This produces a blazar — an object with rapid, violent variability and extremely high luminosity, seen across the entire electromagnetic spectrum.
At an Angle with Jets
When powerful jets are present but we view them from the side, the jets create enormous radio-emitting lobes extending far beyond the galaxy. This gives us a radio galaxy — often a giant elliptical galaxy with two giant lobes of radio emission on either side.
Jets and Radio Galaxies
Some of the most spectacular phenomena in the universe are the relativistic jets launched by active galactic nuclei. These narrow beams of magnetized plasma are accelerated to speeds very close to the speed of light, and they can extend from the tiny accretion disk region all the way out to millions of light-years from the galaxy.
Jet Properties:
- • Speed: Typically 90–99.9% the speed of light
- • Length: From kiloparsecs to megaparsecs (thousands to millions of light-years)
- • Emission: Synchrotron radiation from relativistic electrons spiraling in magnetic fields — visible primarily at radio wavelengths, but also in optical and X-rays
- • Radio lobes: Where jets terminate, they inflate giant bubbles of relativistic plasma called radio lobes, which can be larger than the host galaxy itself
- • Power: Jet power can rival or exceed the luminosity of the accretion disk — up to 10⁴⁶ erg/s
The exact mechanism that launches and collimates jets is still an active area of research, but it is thought to involve the interplay of strong magnetic fields, the rotation of the accretion disk, and possibly the spin of the black hole itself (the Blandford-Znajek mechanism).
Mathematical Deep Dive: Eddington Luminosity and Accretion Power
Optional - Skip if you're just starting out
There is a maximum luminosity at which a black hole can shine while still accreting material. This is the Eddington luminosity, set by the balance between radiation pressure pushing outward and gravity pulling inward:
where \(M\) is the black hole mass, \(m_p\) is the proton mass, \(c\) is the speed of light, and \(\sigma_T\) is the Thomson scattering cross-section. Plugging in numbers:
For a billion-solar-mass black hole: \(L_{\text{Edd}} \approx 1.3 \times 10^{47} \, \text{erg/s} \approx 3 \times 10^{13} \, L_\odot\) — about 30 trillion times the luminosity of the Sun!
The luminosity of an accreting black hole depends on the mass accretion rate \(\dot{M}\)and the radiative efficiency \(\eta\):
For a standard thin accretion disk around a non-spinning black hole, \(\eta \approx 0.06\), meaning about 6% of the rest-mass energy of the infalling material is converted to radiation. For a maximally spinning black hole, \(\eta\) can reach ~0.42 — far more efficient than nuclear fusion (which converts only ~0.7% of rest mass to energy).
The Schwarzschild radius — the size of the event horizon for a non-rotating black hole — is:
For a 10⁹ solar mass black hole: \(R_S \approx 3 \times 10^9 \, \text{km} \approx 20 \, \text{AU}\) — roughly the size of the orbit of Uranus. This is the scale from which all this immense power originates.
AGN Feedback and Galaxy Evolution
Perhaps the most profound discovery about AGN in recent decades is that they don't just passively sit at the centers of galaxies — they actively regulate galaxy evolution through a process called AGN feedback. The energy released by an accreting black hole can heat, push, and even expel the surrounding gas, suppressing star formation and altering the galaxy's trajectory of evolution.
Two Modes of Feedback:
Quasar Mode (Radiative)
When the black hole accretes at a high rate, the intense radiation and powerful winds from the accretion disk can drive gas out of the galaxy entirely. This "blowout" can shut down star formation across the whole galaxy, transforming a blue, star-forming spiral into a red, quiescent elliptical. This mode is most important during galaxy mergers, when large amounts of gas are funneled toward the center.
Maintenance Mode (Kinetic / Radio)
In massive elliptical galaxies at the centers of galaxy clusters, the black hole accretes at a low rate but produces powerful jets. These jets inflate bubbles in the hot intracluster gas, preventing it from cooling and forming new stars. Without this heating, the hot gas would cool, fall onto the galaxy, and trigger massive star formation — so the jets act as a thermostat, maintaining the galaxy in its "red and dead" state.
AGN feedback solves a major puzzle in galaxy evolution: without it, computer simulations predict that massive galaxies should be far more massive and contain far more stars than we actually observe. The energy from the central black hole acts as a self-regulating mechanism — the black hole grows until it is powerful enough to shut off its own fuel supply, establishing the tight M-sigma relation we observe.
Key Takeaway:
Active galactic nuclei are the most powerful sustained energy sources in the universe, powered by accretion onto supermassive black holes. Despite their tiny size (smaller than our solar system), they can outshine entire galaxies and influence the evolution of their hosts across scales of millions of light-years. The unification model elegantly explains the bewildering variety of AGN types as a single phenomenon viewed from different angles. And through feedback, these cosmic engines play a central role in shaping the galaxies we see around us today.
For Graduate Students
Dive into the physics of accretion disks, jet formation, relativistic beaming, AGN spectroscopy, and the detailed mechanisms of AGN feedback:
